- COUPLER

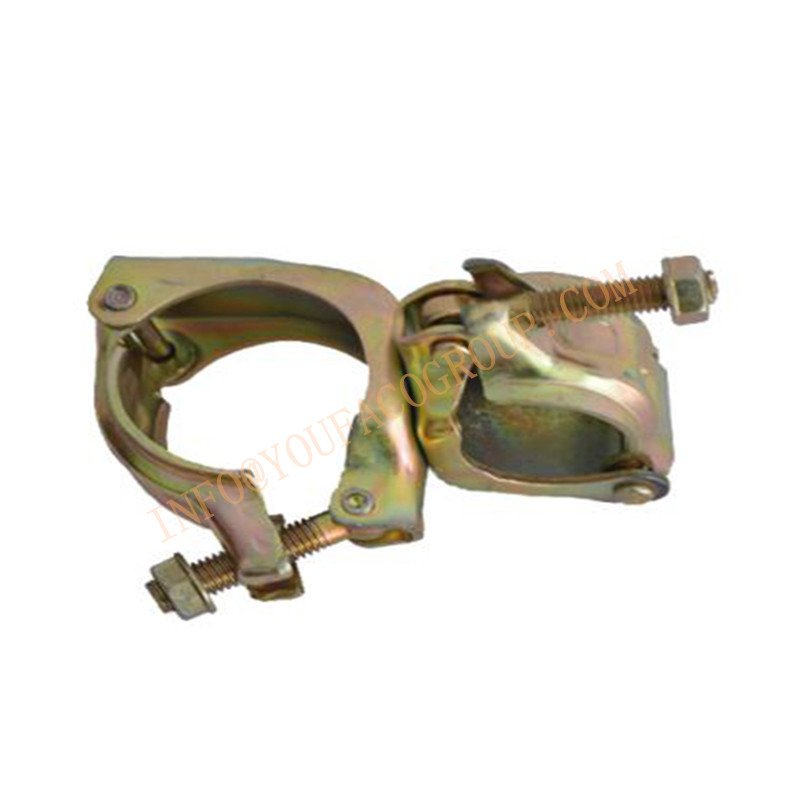

PRESSED SCAFFOLD COUPLER
Material: Q235
Surface treatment: Electro galvanized
Color: Silver
Thickness: 3.0mm，4.75mm
Standard: BS1139, EN74, JIS
Weight: Different specifications different weight
Emboss: Available
Packaging Details: By bag、pallet or as customer’s requst
Application: Tube connection
Delivery Detail: Shipped in 10~15days after payment
YOUFACO Hot Sale Galvanized Pressed Scaffold Coupler, is the basic connection components for scaffoldings with O.D.48/60mm diameter tubes. It also plays a key role in setting up scaffold platform mainly by GI pipes.
Features
• Used in areas where tension joints are required
• Suitable for use with ledger tubes & long bracing
• Coupler available with quality sheet metal
• Applicable for external connection of tubes
• Provide secure joints between tubes
JIS Pressed Coupler
| Fixed coupler | Swivel coupler | ||||||||
| Specifications | 48.6 x 48.6mm | Specifications | 48.6 x 48.6mm | ||||||
| Weight | 650g | 620g | 580g | Weight | 650g | 620g | 580g | ||
| Thickness | 3mm | 2.75mm | 2.5mm | Thickness | 3mm | 2.75mm | 2.5mm | ||
| Material | Q235 | Material | Q235 | ||||||
| Standard: | JISA8951 | Standard: | JISA8951 | ||||||
| Fixed coupler | Fixed coupler | External Pipe Sleeve Clamp | ||||||
| Specifications | 48.6 x 60.5mm | Specifications | 60.5x 60.5mm | Specifications | 48.6mm | |||
| Weight | 690g | Weight | 740g | Weight | 1.0kg | |||
| Thickness | 3mm | Thickness | 3mm | Thickness | 3.5mm | |||
| Material | Q235 | Material | Q235 | Material | Q235 | |||
| Standard: | JISA8951 | Standard: | JISA8951 | Standard: | JISA8951 | |||
| Inner joint pin | Swivel coupler | Swivel coupler | ||||||
| Specifications | 48.6mm | Specifications | 48.6×60.5mm | Specifications | 60.5 x 60.5mm | |||
| Weight | 650g | Weight | 650g | Weight | 740g | |||
| Thickness | 3mm | Thickness | 3mm | Thickness | 3mm | |||
| Material | Q235 | Material | Q235 | Material | Q235 | |||
| Standard: | JISA8951 | Standard: | JISA8951 | Standard: | JISA8951 | |||
BS Pressed Coupler
| Fixed coupler | Swivel coupler | External Pipe Sleeve Clamp | ||||||||
| Specifications | 48.3 x 48.3mm | Specifications | 48.3 x 48.3mm | Specifications | 48.3 x 48.3mm | |||||
| Weight | 0.86kg | 0.82kg | Weight | 1.02kg | 0.98kg | Weight | 1.03kg | |||
| Thickness | 4.75mm | 4.5mm | Thickness | 4.75mm | 4.5mm | Thickness | 3.5mm | |||
| Material | Q235 | Material | Q235 | Material | Q235 | |||||
| Standard: | BS1139 / EN74 | Standard: | BS1139 / EN74 | Standard: | BS1139 / EN74 | |||||
Italian Pressed Coupler
| Right angle coupler | Swivel coupler | ||||
| Specifications | 48.3 x 48.3mm | Specifications | 48.3mm | ||
| Weight | 1.36kg | Weight | 1.55kg | ||
| Thickness | 4.75mm | Thickness | 4.75mm | ||
| Material | Q235 | Material | Q235 | ||
| Standard: | JISA8951 | Standard: | JISA8951 | ||
Korean Pressed Coupler
| Fixed coupler | Swivel coupler | ||||
| Specifications | 48.3 x 48.3mm | Specifications | 48.6 x 48.6mm | ||
| Weight | 1.36kg | Weight | 670g | ||
| Thickness | 4.75mm | Thickness | 4.75mm | ||
| Material | Q235 | Material | Q235 | ||

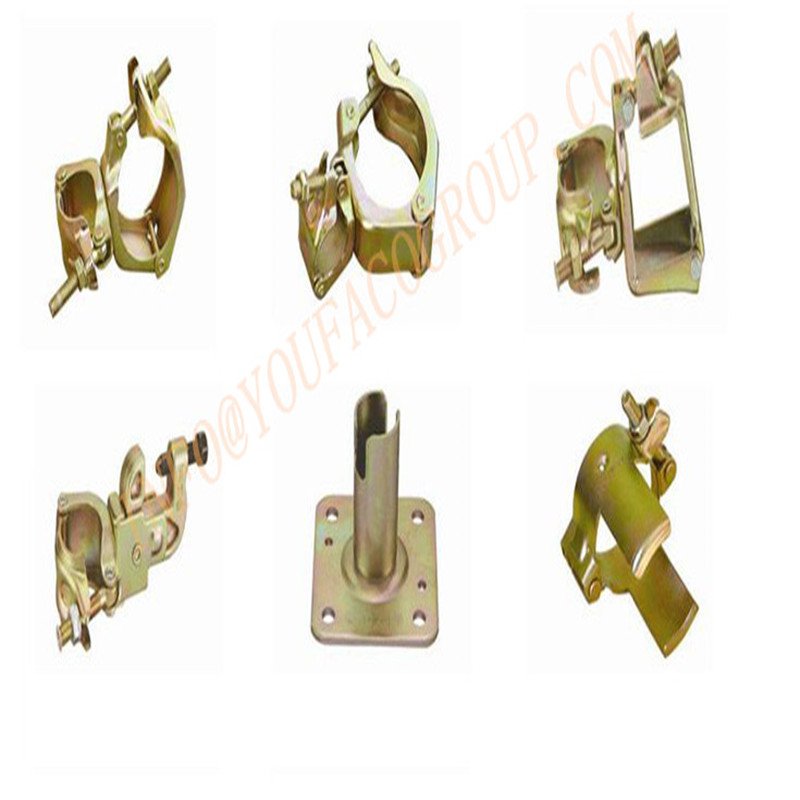

Special Shaped Pressed Coupler
Our Service：

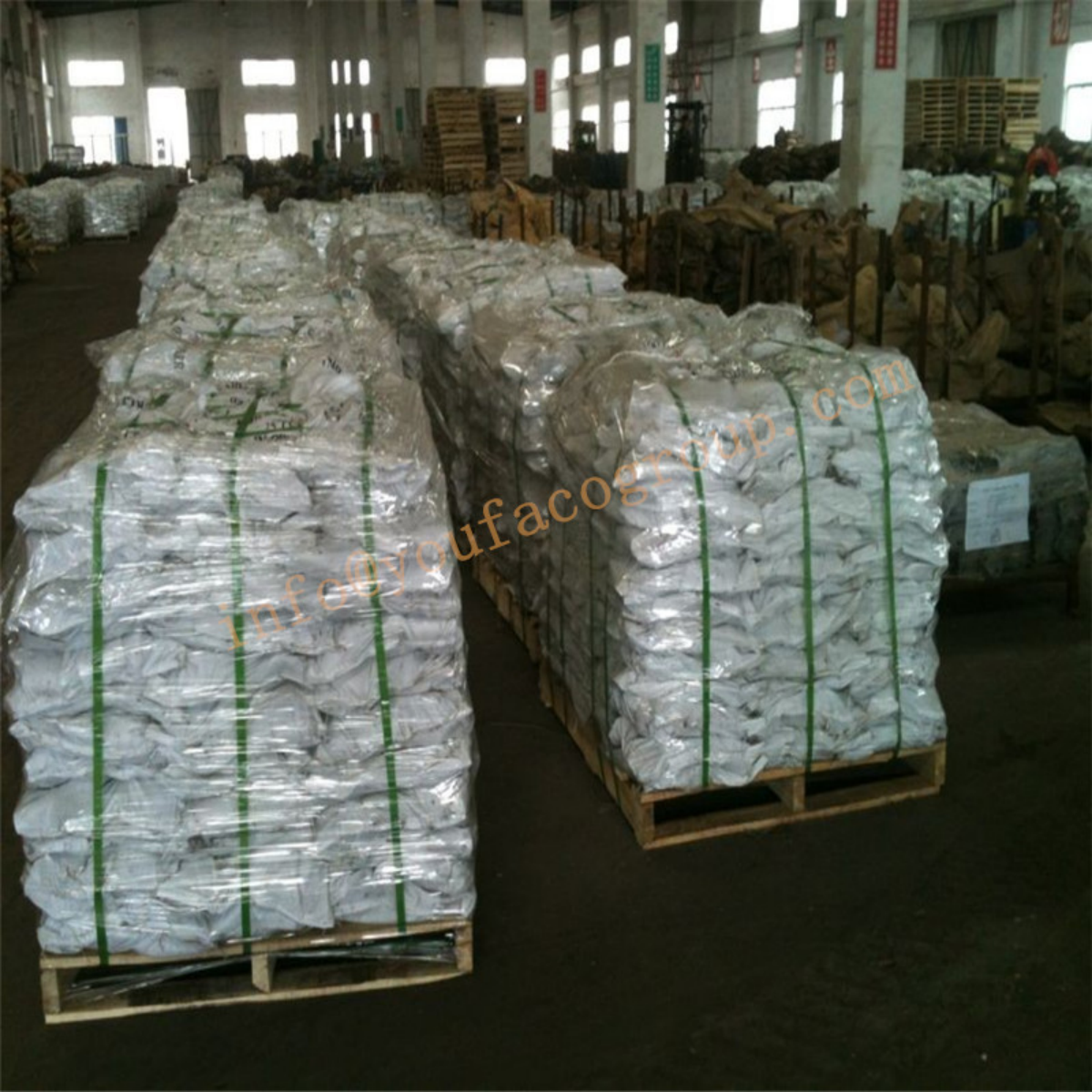

We ensure your goods can be delivered safely:
1.Experienced packer and technician，standard rack.
2.We will offer a container loading plan according to your quantity ordered.
3.Long-term cooperative freight forwarding and shipping company .
