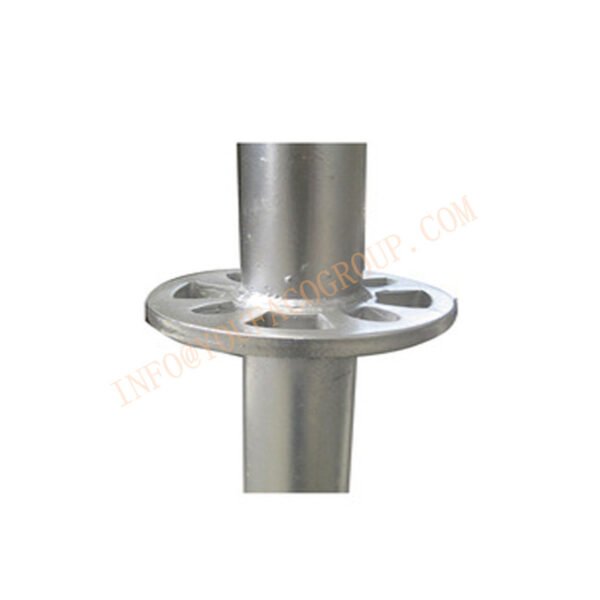

ALLROUND SCAFFOLDING-RINGLOCK SCAFFOLDING
Components: Standard, Ledger, Diagonal brace, Rosette, Base collar, Metal plank, Ladder, Base jack
Material: Q345, Q235, Q195
Surface treatment: Hot dip galvanized,Painted
Color: Silver,Blue or as your request
Length: As your request
Emboss: Available

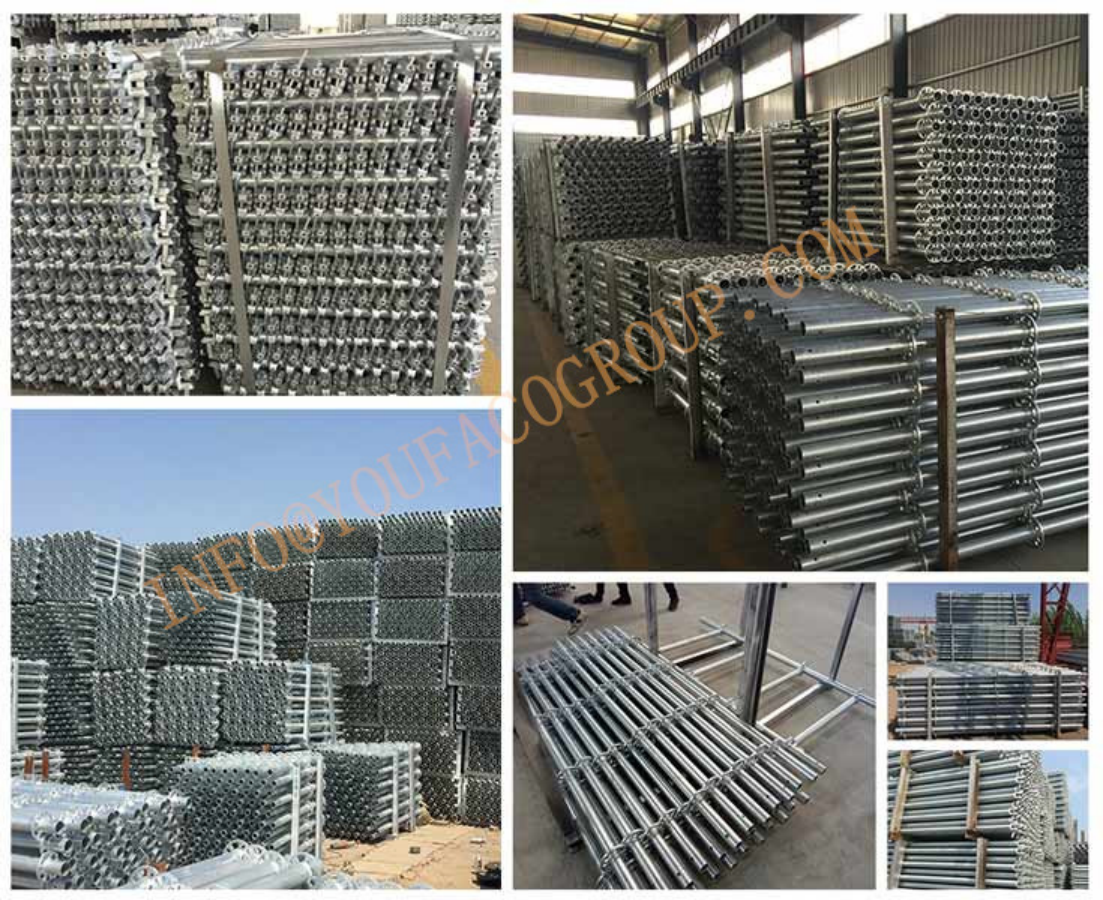

Packaging Details: Packed with steel strips、steel pallet、film or as customer’s requst

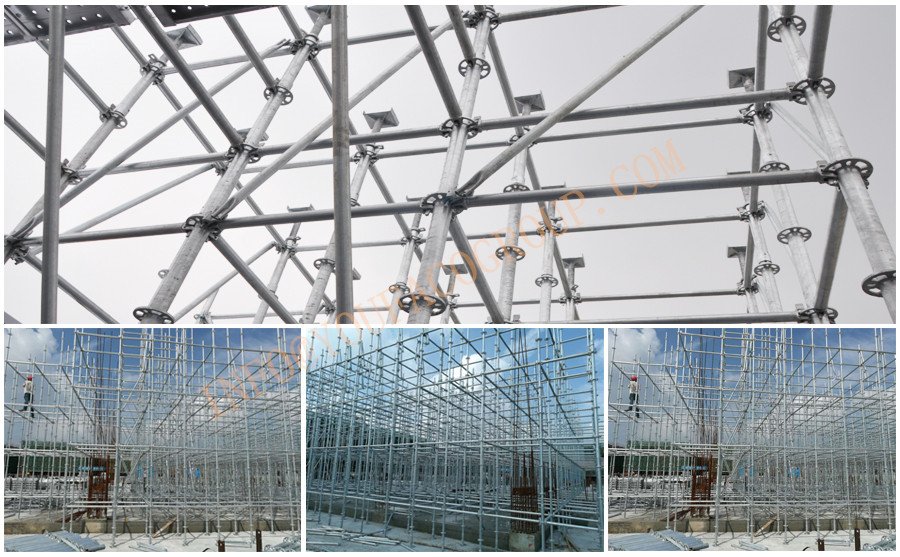

Application: Outdoor Building Construction
Delivery Detail: Shipped in 15~20 days after payment
YOUFACO Ringlock scaffolding is composed of standards, ledgers, diagonal braces, base collars, triangle brackets and wedge pins. Without or only a small amount of manual tools to complete the frame body erected and improve work efficiency. Surface treatment products using hot-dip anti-corrosion technology, improve service life, will not reduce the bearing capacity due to corrosion.
1.Quick erection
2.Safe and simple one-man assembly
3.Very littele material required
4.Maintenance free and always ready to use
5.Economic and versatile design.
Product Size
| Standard | |||||||
| Model | Spec(mm) | Material | Weight(kg) | Model | Spec | Texlure | Weight(kg) |
| A-LG-250 | Φ60*3.2*250 | Q345B | 2.65 | B-LG-250 | Φ48*3.2*250 | Q345B | 1.89 |
| A-LG-500 | Φ60*3.2*500 | Q345B | 3.75 | B-LG-500 | Φ48*3.2*500 | Q345B | 2.95 |
| A-LG-1000 | Φ60*3.2*1000 | Q345B | 6.65 | B-LG-1000 | Φ48*3.2*1000 | Q345B | 5.3 |
| A-LG-1500 | Φ60*3.2*1500 | Q345B | 9.6 | B-LG-1500 | Φ48*3.2*1500 | Q345B | 7.64 |
| A-LG-2000 | Φ60*3.2*2000 | Q345B | 12.5 | B-LG-2000 | Φ48*3.2*2000 | Q345B | 9.9 |
| A-LG-2500 | Φ60*3.2*2500 | Q345B | 15.5 | B-LG-2500 | Φ48*3.2*2500 | Q345B | 12.3 |
| Ledger | |||||||
| Model | Spec(mm) | Material | Weight(kg) | Model | Spec | Texlure | Weight(kg) |
| A-SG-300 | Φ48*2.5*240 | Q235B | 1.4 | A-SG-1500 | Φ48*2.5*1440 | Q235B | 5 |
| A-SG-600 | Φ48*2.5*540 | Q235B | 2.3 | A-SG-1800 | Φ48*2.5*1740 | Q235B | 5.9 |
| A-SG-900 | Φ48*2.5*840 | Q235B | 3.2 | A-SG-2100 | Φ48*2.5*2040 | Q235B | 6.8 |
| A-SG-1200 | Φ48*2.5*1140 | Q235B | 4.1 | A-SG-2400 | Φ48*2.5*2340 | Q235B | 7.7 |
| Diagonal Brace | |||||||
| Model | Spec(mm) | Material | Weight(kg) | Model | Spec | Texlure | Weight(kg) |
| B-XG-600*1500 | Φ33*2.3*1606 | Q195 | 3.92 | B-XG-1500*1500 | Φ33*2.3*2042 | Q195 | 4.7 |
| B-XG-900*1500 | Φ33*2.3*1710 | Q195 | 4.1 | B-XG-1800*2000 | Φ33*2.3*2618 | Q195 | 5.7 |
| B-XG-1200*1500 | Φ33*2.3*1859 | Q195 | 4.4 | B-XG-2100*2000 | Φ33*2.3*2833 | Q195 | 8.22 |
Our Service：
We ensure your goods can be delivered safely:
1.Experienced packer and technician，standard rack.
2.We will offer a container loading plan according to your quantity ordered.
3.Long-term cooperative freight forwarding and shipping company .
